TSP ERM Power Kit – 2018+ KTM/Husky/Gas Gas 250cc TPI

This is the ONLY complete solution currently for sale on the market that addresses all the necessary TPI issues – head, ignition and fuel. It is also the MOST COST EFFECTIVE solution by far. All other solutions are either more expensive or only tackle part of the problem. With the new TSP ERM, you also get a handheld device that has the ability to show live data, read and clear fault codes, data log, make fuel/ignition/oil changes (with Pro or Pro+ mode activated) plus much more!

NOTE: With the purchase of an ERM, you DO NOT need to ship us your ECU. Once you receive the ERM, you will use the ERM to download the correct maps for your bike, and you will flash your own ECU using the ERM.

$770.00

Top End Rebuild Kit (+$220.00)
TPI Injector Relocation Kit (+$180.00)
Oil Pump Delete Kit (+$40.00)
TPI Map Switch (+$35.00)
Crank Case Pressure Sensor (+$55.00)
Gasket Kit (+$25.00)
Fuel Filter (+$30.00)
Fuel Fitting (+$30.00)
Twin Air Filter (+$30.00)
Low (+$150.00)
Medium (+$150.00)
High (+$150.00)

Model Validator - Please enter your bike info before adding to cart

SKU: PWRKIT+ERM-TPI-250 Category:

Description

TSP ERM Power Kit 250

Introducing a world first in two-stroke tuning with our brand new package – the TSP ERM Power kit, featuring the new TSP ECU Re-flash Module (ERM )!

This is designed for all 250cc TPI KTM, Husky & Gas Gas models from 2018-current. All 2018-2019 KTM and Husky 250cc models require the ERM Adapter Cable. Be sure to select in the options above.

This package will transform the power delivery of your 2018-2023 250cc TPI, it includes the following:

  • A handheld touchscreen ERM device which comes with a free downloadable TSP ECU Tune to suit your bike & relevant TSP modifications. For a full breakdown of this product, check out the TSP ERM website.

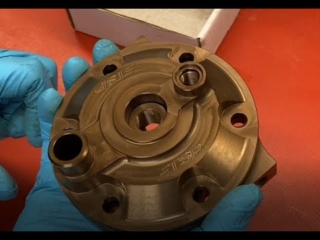

  • A billet TSP machined cylinder head in low, medium, high or very high compression ratios (see below for explanation)

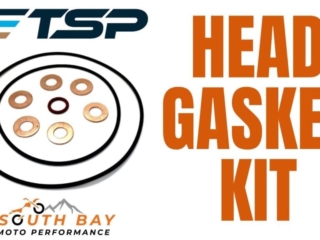

  • The TSP head includes a complete head gasket kit
  • A new NGK spark plug, better suited to the improved power the engine makes with this kit

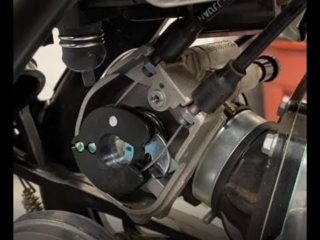

  • TSP idle bolt mod package (bolt and spring) so you can set your idle speed correctly after setting your air screw

The ERM device is an alternative to our current ECU re-flash service, meaning you no longer have to mail in your ECU. This means no down-time on your bike! Furthermore, you now get a handheld device that has the ability to show live data, read and clear fault codes, data logs, make fuel/ignition/oil changes (with Pro or Pro+ mode activated) plus much more! The ERM also comes with a mount kit so you can have it mounted to your handlebars, or it can be used handheld and easily kept in a toolbag.

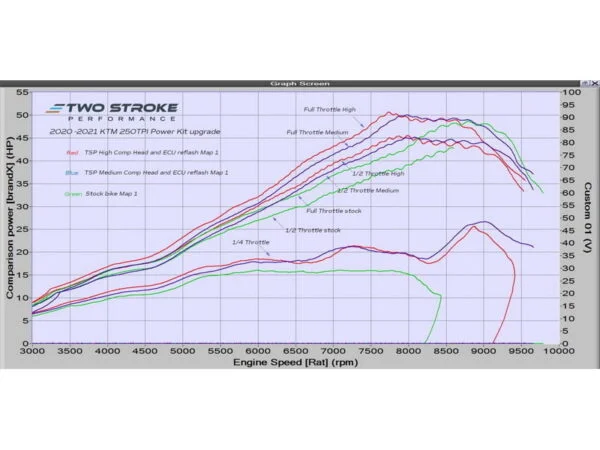

This package makes an astonishing difference to the TPI, and when you download your free TSP Map to your bike on your ERM device, you will achieve:

  • Much more torque at low/mid revs, where you need it most, with a nice increase in power higher up in the rev range as well.
  • Drastically improved 0-1/2 throttle performance
  • More oil than the stock maps for improved reliability
  • 2 ignition maps: Hard and Soft. The stock map switch works like normal to select between the customized maps, or you can use our TSP Map switch. The hard map is our standard ‘full tune’, while the soft map is designed for really soft inputs in harsh conditions, or deep sand riding to help protect your engine.
  • Much smoother, crisper power delivery at part throttle.
  • Much less ‘pipe bang’… this is the annoying “dang, dang, dang” noise the engine makes on deceleration. Its generally harmless but very annoying and makes some stock TPI bikes unpleasant to ride at times.
  • Safer air/fuel ratios at high rpm and large throttle openings so the engine is safer during prolonged high speed running
  • Better throttle response
  • You can ride in a higher gear with lower revs in many situations and use the extra low end torque to get you places with less wheel spin and much less clutch work
  • Ability to tune/adjust your own oil/fuel/ignition maps with our Pro or Pro+ Modes.

There is no risk to reliability with this setup! The ignition maps, air fuel ratios and combustion chamber designs are similar to those we have run very successfully for years.

In order to have the skills to adjust the stock ECU data, we have spent hundreds of hours developing our own process for accessing, changing and reloading the ECU data. TSP was the first to develop a tuned package for the TPI bikes and we have years of experience testing and tuning fuel injected 2 strokes prior to the release of the TPIs in 2018. Now we have achieved a product that puts the power literally in your own hands!

The ERM unit pairs with your standard ECU,  and all ECU features work normally including oil injection, fan and warning lights.

We supply installation instructions plus recommended settings for the air screw and power valve preload.

Combustion chamber designs:

  • LOW COMP – this head and ECU tune was designed to suit extreme enduro riding or for riders who are more interested in smoothness over power gains. It offers strong bottom end torque with a very smooth delivery that wont break traction too easily. It enables the rider to use lower revs and less clutch when tackling hard obstacles. The low comp design also offers maximum resistance to overheating in tough situations.
  • MEDIUM COMP (Best Seller) – this head and ECU tune suits the majority of trail riders and racers who want more torque off the bottom and mid power and a small gain up top as well. The power delivery is much stronger and more tractable than stock and suits a wide range of riding conditions. Suited to 91 octane fuel.
  • HIGH COMP – this head and ECU tune suits riders who want harder hitting power everywhere, especially down low. It completely transforms the TPI into a weapon. Also suited to normal trail riders who live at higher elevation. Best with 91+ octane fuel at sea level.
  • VERY HIGH COMP – this head design suits very high elevation riding above 6,000 ft. When used at the appropriate elevation it will give similar results to the Medium or High Compression heads near sea level.





* Map adjustments on the TSP ERM are available after purchasing the optional Pro or Pro+ Modes on the TSP ERM website

Reviews

There are no reviews yet.

Be the first to review “TSP ERM Power Kit – 2018+ KTM/Husky/Gas Gas 250cc TPI”

Your email address will not be published. Required fields are marked *

Below are the make(s) and model(s) that will fit this part.

YearMakeEngine CCModel
YearMakeEngine CCModel
2018Husqvarna250TE-i
2018KTM250XC-W TPI
2019Husqvarna250TE-i
2019KTM250XC-W TPI
2020Husqvarna250TE-i
2020Husqvarna250TX-i
2020KTM250XC TPI
2020KTM250XC-W TPI
2021Husqvarna250TE-i
2021Husqvarna250TX-i
2021KTM250XC TPI
2021KTM250XC-W TPI
2022Gas Gas250EC TPI
2022Gas Gas250EX TPI
2022Husqvarna250TE-i
2022Husqvarna250TX-i
2022KTM250XC TPI
2022KTM250XC-W TPI
2023Gas Gas250EC TPI
2023Gas Gas250EX TPI
2023Husqvarna250TE-i
2023KTM250XC-W TPI
